Unified Gateway Installation & Management Centrally via MP

This document focuses on the Unified Gateway installation & management centrally via TSB Management Plane using the new MP Install Gateway Template resource and the Gateway Install resource.

Alpha Feature

This feature is currently in alpha and may undergo changes in future releases. It is not recommended for production use.

Introduction​

TSB Management Plane supports creating Install Gateway Template resources at the organization level to streamline gateway deployment across your infrastructure. These organization-level templates serve as base configurations that define standard gateway settings, security contexts, resource allocations, and other operational parameters that should be consistently applied across your clusters.

When application teams create TSB gateway configurations, the Management Plane automatically references the appropriate gateway templates during translation based on cluster characteristics such as cloud provider, cluster labels, and other selectors. The template settings are then merged and applied during the creation of Kubernetes resources in the target cluster, ensuring consistent, secure, and optimized gateway deployments without requiring each team to define infrastructure-level configurations.

This approach provides:

  • Centralized governance: Platform teams define standard configurations once at the org level
  • Consistency: Gateway deployments inherit appropriate settings based on their environment
  • Flexibility: Application teams can override specific properties when needed for their use cases
  • Reduced complexity: Development teams focus on application routing without infrastructure concerns

How Gateway Deployment Using Templates Works?​

Understanding when and where the physical ingress gateway infrastructure is deployed is crucial — here’s how it works:

The physical ingress gateway pod is deployed in the namespace of an application service that’s part of a TSB Workspace, when a Gateway resource is created for that service.

Here's the complete flow:

  • Template Creation: Platform teams create Install Gateway Template resources at the organization level with environment or cluster-specific selectors
  • Gateway Configuration: Application teams create a Gateway resource defining routing rules and hostnames, under the TSB Workspace configured for their service namespace
  • Template Matching: TSB Management Plane matches the target cluster's characteristics (cloud provider, labels) with the appropriate templates
  • Translation: TSB Management Plane translates the Gateway deployment configuration, merging it with the matched template's settings (HPA, security context, service type, etc.)
  • Propagation: The translated Gateway deployment configuration is propagated by Global Control Plane (XCP Central) to the target clusters
  • Deployment: The Local Control Plane (XCP Edge) deploys the actual gateway infrastructure (pods, services, HPA) into the service's namespace as Kubernetes resources

InstallGatewayTemplate Resource​

The InstallGatewayTemplate resource defines the standard configuration for gateways in your organization:

apiVersion: gateway.tsb.tetrate.io/v2
kind: InstallGatewayTemplate
metadata:
  name: base-igw-template
  annotations:
    tsb.tetrate.io/organization: tetrate
spec:
  displayName: "Base Ingress Gateway Template"
  description: "Template for ingress gateways deployed across all clusters"
  allClustersSelector: true
  gatewaySpec:
    type: INGRESS
    kubeSpec:
      service:
        type: LoadBalancer
      deployment:
        hpaSpec:
          minReplicas: 2
          maxReplicas: 12
        resources:
          requests:
            memory: "256Mi"
            cpu: "200m"
          limits:
            memory: "1Gi"
            cpu: "1000m"
        podSecurityContext:
          fsGroup: 65535
          seccompProfile:
            type: RuntimeDefault
          supplementalGroups:
          - 65535
        containerSecurityContext:
          allowPrivilegeEscalation: false
          privileged: false
          readOnlyRootFilesystem: true
          runAsGroup: 65535
          runAsNonRoot: true
          runAsUser: 65535

Template Types​

TSB mainly supports three types of template selectors, allowing you to create templates that apply across different scopes within your organization.

Environment-Specific Templates​

Environment-specific templates target gateways based on cloud provider or infrastructure type. This allows you to define provider-specific configurations such as load balancer types, security contexts, or resource limits that align with each cloud platform's best practices.

AKS Template Example​

apiVersion: gateway.tsb.tetrate.io/v2
kind: InstallGatewayTemplate
metadata:
  name: aks-gw-template
  annotations:
    tsb.tetrate.io/organization: tetrate
spec:
  displayName: "AKS Ingress Gateway Template"
  description: "Template for Ingress gateways deployed on AKS"
  environmentSelector:
    provider: "aks"
  gatewaySpec:
    type: INGRESS
    kubeSpec:
      service:
        type: LoadBalancer
      deployment:
        hpaSpec:
          minReplicas: 2
          maxReplicas: 12

Cluster-Specific Template​

Cluster-specific templates apply to gateways based on cluster labels and properties. This is useful when you have specific clusters that require unique configurations, such as dedicated clusters for high-memory workloads or specific teams.

Once you tag the clusters in TSB using custom labels, you can use the same labels in the Template as a selection criteria.

apiVersion: gateway.tsb.tetrate.io/v2
kind: InstallGatewayTemplate
metadata:
  name: payment-cluster-template
  annotations:
    tsb.tetrate.io/organization: tetrate
spec:
  displayName: "Payment Team Cluster Template"
  description: "Template for gateways in payment team clusters"
  clusterSelector:
    labels:
      team: "payment"
    namespaceSelector:
      labels:
        mem: "high"
  gatewaySpec:
    type: INGRESS
    kubeSpec:
      deployment:
        hpaSpec:
          minReplicas: 3
          maxReplicas: 20
        resources:
          requests:
            memory: "512Mi"
            cpu: "500m"
          limits:
            memory: "2Gi"
            cpu: "2000m"

All-Cluster Template​

All-cluster templates serve as organization-wide base configurations that apply to all gateways unless overridden by more specific MP Gateway Install resource.

apiVersion: gateway.tsb.tetrate.io/v2
kind: InstallGatewayTemplate
metadata:
  name: org-wide-gw-template
  annotations:
    tsb.tetrate.io/organization: tetrate
spec:
  displayName: "Organization-Wide Gateway Template"
  description: "Base template for all gateways across the organization"
  allClustersSelector: true
  gatewaySpec:
    type: UNIFIED
    kubeSpec:
      deployment:
        podSecurityContext:
          fsGroup: 65535
          seccompProfile:
            type: RuntimeDefault
        containerSecurityContext:
          allowPrivilegeEscalation: false
          privileged: false
          readOnlyRootFilesystem: true
          runAsNonRoot: true
          runAsUser: 65535

How to Use InstallGatewayTemplates?​

This example demonstrates how gateway templates automatically apply to application gateways across different clusters based on the cloud provider.

Setup Overview​

This is what we are going to do:

  • Create an organization-wide gateway template specific to the gke cloud provider
  • Onboard two control plane clusters: c1 and c2
  • Deploy applications with gateway configurations in each cluster
  • Observe how the gateway template automatically provisions gateway infrastructure

Cluster C1​

  • Deploy bookinfo application in the payment namespace
  • Create Tenant payment and workspace payment-ws with the selector as c1/payment
  • Define gateway configuration to expose bookinfo.tetrate.io without an install resource

Cluster C2​

  • Deploy httpbin application in the marketing namespace
  • Create Tenant marketing and workspace marketing-ws with the selector as c2/marketing
  • Define gateway configuration to expose httpbin.tetrate.io without an install resource

Step 1: Create the GKE Gateway Template​

Create the InstallGatewayTemplate resource under the Organization for provider gke.

gke-ingress-gw-template.yaml
apiVersion: gateway.tsb.tetrate.io/v2
kind: InstallGatewayTemplate
metadata:
  name: gke-gw-template
  organization: tetrate
spec:
  displayName: "GKE Ingress Gateway Template"
  description: "Template for Ingress gateways deployed on GKE"
  environmentSelector:
    provider: "gke"
  gatewaySpec:
    type: INGRESS
    kubeSpec:
      service:
        type: LoadBalancer
      deployment:
        hpaSpec:
          minReplicas: 2
        podSecurityContext:
          fsGroup: 65535
          seccompProfile:
            type: RuntimeDefault
          supplementalGroups:
          - 65535
        containerSecurityContext:
          allowPrivilegeEscalation: false
          privileged: false
          readOnlyRootFilesystem: true
          runAsGroup: 65535
          runAsNonRoot: true
          runAsUser: 65535
tctl apply -f gke-gw-template.yaml

Step 2: Deploy to Cluster C1 (Payment Team)​

Create the payment Tenant and other TSB resources along with the gateway configuration to expose bookinfo.tetrate.io:

payment-conf.yaml
  - apiVersion: api.tsb.tetrate.io/v2
    kind: Tenant
    metadata:
      name: payment
      organization: tetrate
    spec:
      displayName: Payment
  - apiVersion: api.tsb.tetrate.io/v2
    kind: Workspace
    metadata:
      name: payment-ws
      organization: tetrate
      tenant: payment
    spec:
      namespaceSelector:
        names:
          - "c1/payment"
      displayName: payment-ws
  - apiVersion: gateway.tsb.tetrate.io/v2
    kind: Group
    metadata:
      name: payment-gg
      organization: tetrate
      tenant: payment
      workspace: payment-ws
    spec:
      displayName: Payment Gateway Group
      namespaceSelector:
        names:
          - "c1/payment"
      configMode: BRIDGED
  - apiVersion: gateway.tsb.tetrate.io/v2
    kind: Gateway
    metadata:
      name: bookinfo-ig
      organization: tetrate
      tenant: payment
      workspace: payment-ws
      gatewayGroup: payment-gg
    spec:
      displayName: Bookinfo Ingress
      workloadSelector:
        namespace: payment
        labels:
          app: bookinfo-ingress-gateway
      http:
        - hostname: bookinfo.tetrate.io
          name: bookinfo-tetrate
          port: 80
          routing:
            rules:
              - route:
                  serviceDestination:
                    host: "payment/productpage.payment.svc.cluster.local"
                    port: 9080
tctl apply -f payment-conf.yaml

Observe the Gateway Deployments Triggered by the Gateway Resource​

When you created the gateway.tsb.tetrate.io/bookinfo-ig resource above, the TSB Management Plane matched it with the GKE template, translated the configuration, propagated into target cluster by Global Control Plane and XCP Edge running on control plane cluster deployed the physical gateway infrastructure into the payment namespace.

Note that during translation, the gateway deployment resource inherits properties like security context, HPA and other settings from the GKE template. Let's verify this:

You can verify the status of gateway deployment via TSB UI

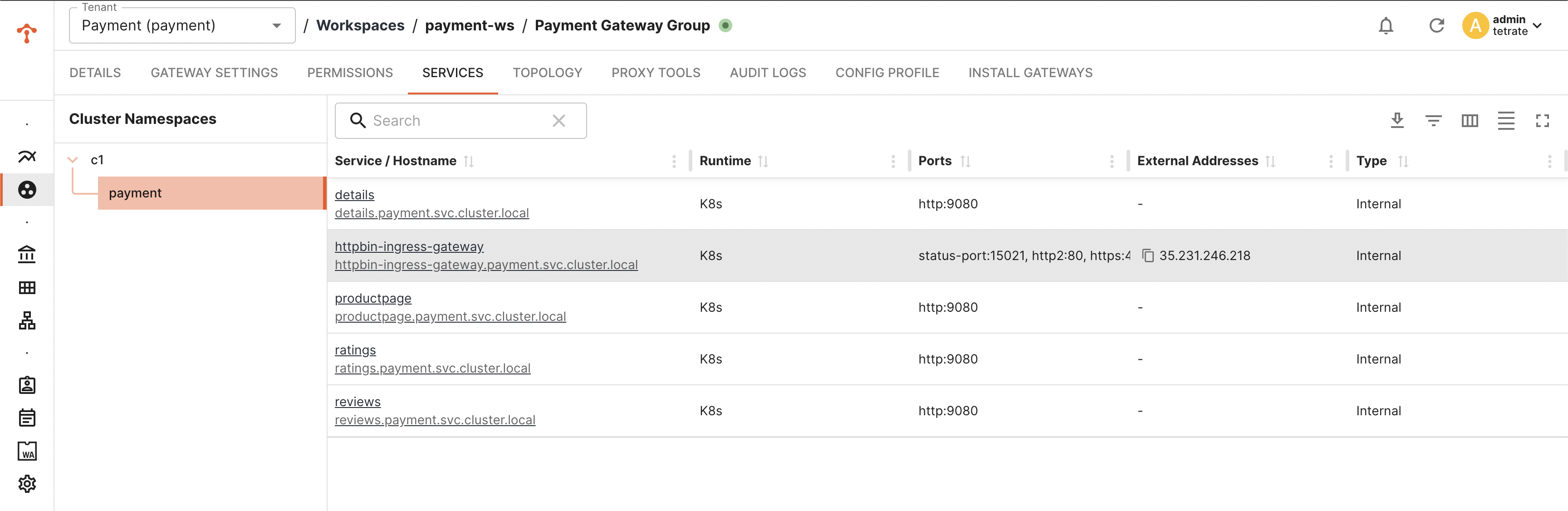

Service Status

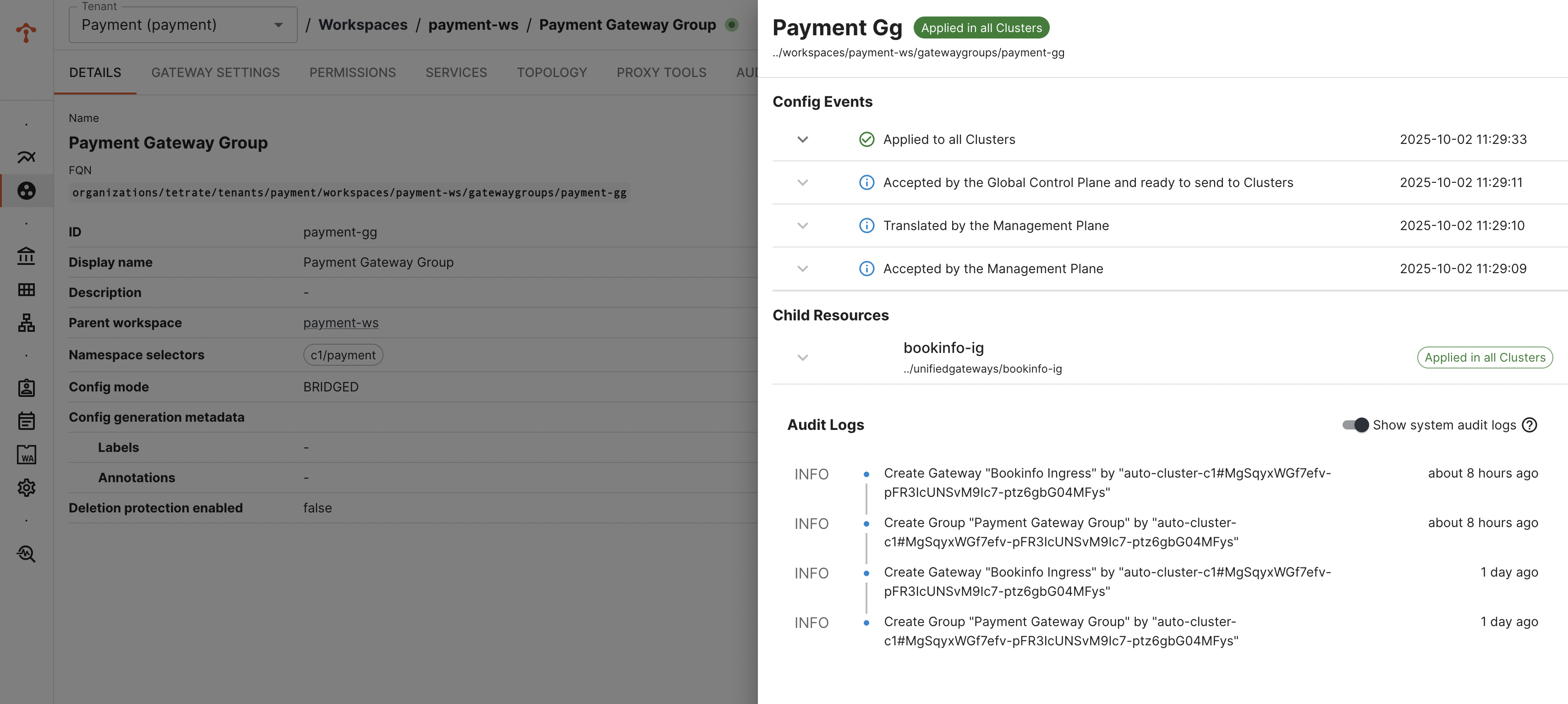

Unified Gateway Config Status

Verify the K8s Resources Deployed in the Target Cluster​

Note: Name of the deployment, service and other kube resources would be taken from the labels.app configured in Gateway configuration. Verify number of replicas, security context settings are inherited and applied as per the gke template.

kubectl get all -n payment

NAME                                       READY   STATUS    RESTARTS   AGE
pod/bookinfo-ingress-gateway-568bc57bc8-wkzhw   1/1     Running   0          21m

NAME                          TYPE           CLUSTER-IP       EXTERNAL-IP      PORT(S)                                      AGE
service/bookinfo-ingress-gateway   LoadBalancer   172.24.144.118   35.231.246.218   15021:32276/TCP,80:31401/TCP,443:32117/TCP   21m

NAME                                  READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/bookinfo-ingress-gateway   1/1     1            1           21m

NAME                                             DESIRED   CURRENT   READY   AGE
replicaset.apps/bookinfo-ingress-gateway-568bc57bc8   1         1         1       21m

NAME                                                      REFERENCE                        TARGETS       MINPODS   MAXPODS   REPLICAS   AGE
horizontalpodautoscaler.autoscaling/bookinfo-ingress-gateway   Deployment/bookinfo-ingress-gateway   cpu: 4%/75%   2         10        1          21m

Step 3: Deploy to Cluster C2 (Marketing Team)​

Create the marketing Tenant and TSB resources along with the gateway configuration to expose httpbin.tetrate.io:

marketing-tsb-conf.yaml
  - apiVersion: api.tsb.tetrate.io/v2
    kind: Tenant
    metadata:
      name: marketing
      organization: tetrate
    spec:
      displayName: marketing
  - apiVersion: api.tsb.tetrate.io/v2
    kind: Workspace
    metadata:
      name: marketing-ws
      organization: tetrate
      tenant: marketing
    spec:
      namespaceSelector:
        names:
          - "c2/marketing"
      displayName: marketing-ws
  - apiVersion: gateway.tsb.tetrate.io/v2
    kind: Group
    metadata:
      name: marketing-gg
      organization: tetrate
      tenant: marketing
      workspace: marketing-ws
    spec:
      displayName: marketing Gateway Group
      namespaceSelector:
        names:
          - "c2/marketing"
      configMode: BRIDGED
  - apiVersion: gateway.tsb.tetrate.io/v2
    kind: Gateway
    metadata:
      name: httpbin-ingress-gateway
      organization: tetrate
      tenant: marketing
      workspace: marketing-ws
      gatewayGroup: marketing-gg
    spec:
      displayName: Httpbin Ingress
      workloadSelector:
        namespace: marketing
        labels:
          app: httpbin-ingress-gateway
      http:
        - hostname: httpbin.tetrate.io
          name: httpbin-tetrate
          port: 80
          routing:
            rules:
              - route:
                  serviceDestination:
                    host: "marketing/httpbin.marketing.svc.cluster.local"
                    port: 8000
tctl apply -f marketing-tsb-conf.yaml

Observe the Gateway Deployments Triggered by the Gateway resource​

When you created the gateway.tsb.tetrate.io/httpbin-ingress-gateway resource above, the TSB Management Plane matched it with the GKE template, translated the configuration, propagated into target cluster by Global Control Plane and XCP Edge running on the control plane cluster deployed the physical gateway infrastructure into the marketing namespace.

Note that during translation, the gateway deployment resource inherits properties like security context, HPA and other settings from the GKE template. Let's verify this:

You can verify the status of gateway deployment via TSB UI

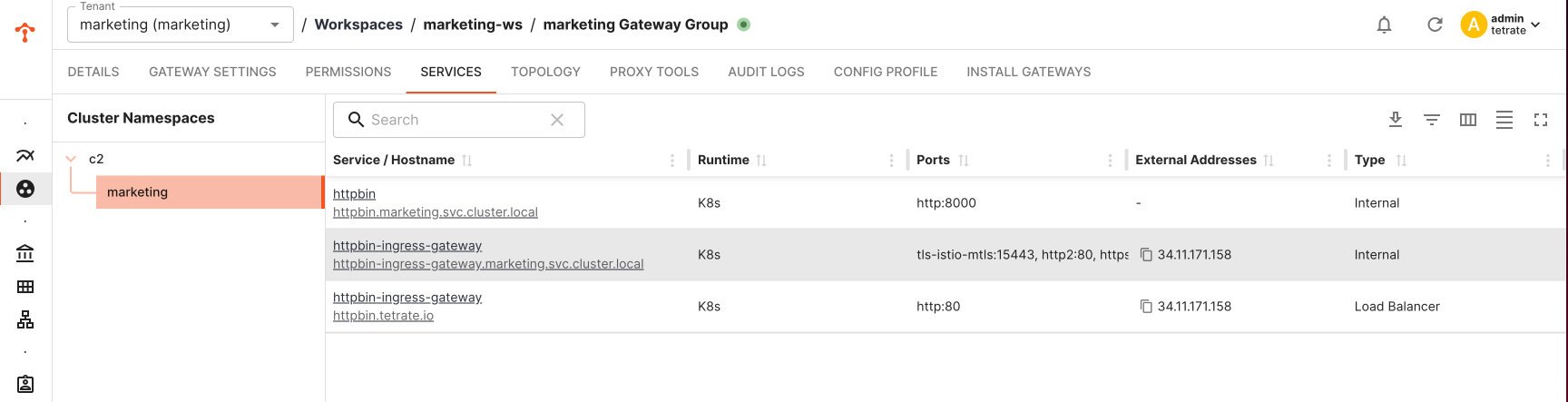

Service Status

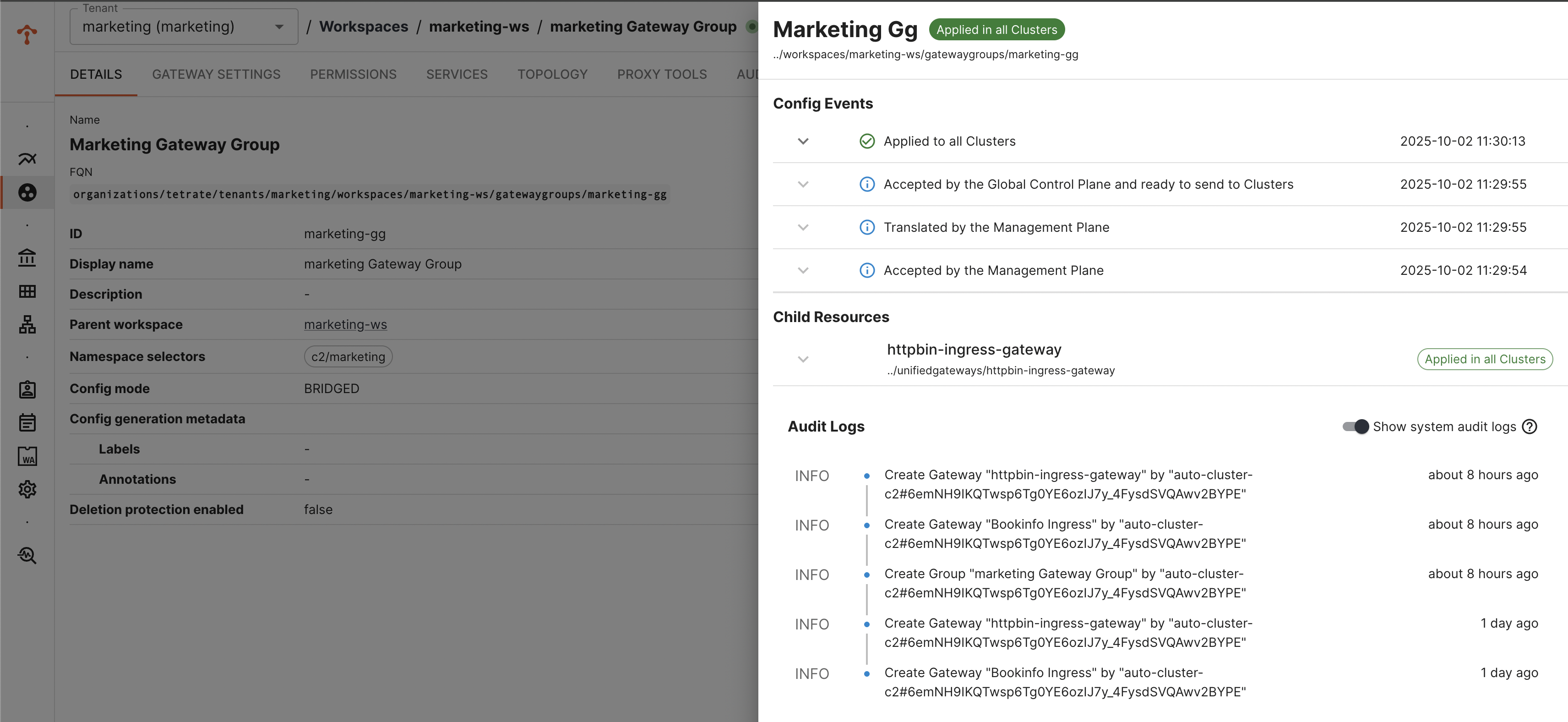

Unified Gateway Config Status

Verify the K8s Resources Deployed in the Target Cluster​

Note: Name of the deployment, service and other kube resources would be taken from the labels.app configured in Gateway configuration. Verify num of replicas, security context settings are inherited and applied as per the gke template.

kubectl get all -n marketing

NAME                                           READY   STATUS    RESTARTS   AGE
pod/httpbin-ingress-gateway-54f64bf654-8mz26   1/1     Running   0          6s

NAME                              TYPE           CLUSTER-IP       EXTERNAL-IP   PORT(S)                                      AGE
service/httpbin-ingress-gateway   LoadBalancer   172.25.171.125   <pending>     15021:32397/TCP,80:30182/TCP,443:32420/TCP   9s

NAME                                      READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/httpbin-ingress-gateway   1/1     1            1           11s

NAME                                                 DESIRED   CURRENT   READY   AGE
replicaset.apps/httpbin-ingress-gateway-54f64bf654   1         1         1       12s

NAME                                                          REFERENCE                            TARGETS              MINPODS   MAXPODS   REPLICAS   AGE
horizontalpodautoscaler.autoscaling/httpbin-ingress-gateway   Deployment/httpbin-ingress-gateway   cpu: <unknown>/75%   1         10        0          14s

Overriding Template Properties with MP Install Resources​

While organization-level templates provide consistent baseline configurations, there are scenarios where application-specific requirements necessitate customization. TSB allows you to override template properties by creating Management Plane Gateway Install resources alongside your application gateway configurations.

When to Use Application Specific Overrides​

Override capabilities are particularly useful for:

  • Scale requirements: Applications expecting higher traffic volumes need increased replica counts
  • Performance tuning: Specific workloads requiring different resource allocations
  • Regulatory compliance: Specific applications requiring additional security constraints

Override Example: Scaling for High Traffic​

In this example, the marketing team anticipates a promotional campaign that will significantly increase traffic to their httpbin service. Rather than modifying the organization-wide template (which would affect all gateways), they can create an MP install resource to scale only their specific gateway.

Create the override MP install resource:​

httpbin-gw-install.yaml
apiVersion: install.tetrate.io/v1alpha1
kind: Gateway
metadata:
  name: httpbin-ingress-gateway
  organization: tetrate
  tenant: marketing
  workspace: marketing-ws
  gatewayGroup: marketing-gg
spec:
  type: INGRESS
  targetCluster: c2
  targetNamespace: marketing
  kubeSpec:
    deployment:
      labels:
        app: httpbin-ingress-gateway
      hpaSpec:
        minReplicas: 4
tctl apply -f httpbin-gw-install.yaml

The targetCluster and targetNamespace fields provide granular control to target specific application gateway deployments for overrides. This precision ensures that your configuration changes apply only to the intended gateway in the specific cluster and namespace, preventing unintended impacts on other gateways that may share similar names or characteristics across your multi-cluster environment.

Verify the updated configuration​

NAME                                           READY   STATUS    RESTARTS   AGE
pod/httpbin-ingress-gateway-5466ddf675-5ldx5   1/1     Running   0          14m
pod/httpbin-ingress-gateway-5466ddf675-s5kvq   1/1     Running   0          14m
pod/httpbin-ingress-gateway-5466ddf675-txvw2   1/1     Running   0          14m
pod/httpbin-ingress-gateway-5466ddf675-v8rwt   1/1     Running   0          14m

NAME                              TYPE           CLUSTER-IP       EXTERNAL-IP      PORT(S)                                      AGE
service/httpbin-ingress-gateway   LoadBalancer   172.25.171.125   34.123.45.67     15021:32397/TCP,80:30182/TCP,443:32420/TCP   14m

NAME                                      READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/httpbin-ingress-gateway   4/4     4            4           14m

NAME                                                 DESIRED   CURRENT   READY   AGE
replicaset.apps/httpbin-ingress-gateway-5466ddf675   4         4         4       14m

NAME                                                          REFERENCE                            TARGETS       MINPODS   MAXPODS   REPLICAS   AGE
horizontalpodautoscaler.autoscaling/httpbin-ingress-gateway   Deployment/httpbin-ingress-gateway   cpu: 4%/75%   4         10        4          14m

The gateway now runs with 4 minimum replicas instead of the template's default of 2, providing additional capacity for the anticipated traffic increase while maintaining all other template configurations (security context, max replicas, service type, etc.).

Advanced: Template Priority and Configuration Merging​

For sophisticated scenarios, TSB supports defining multiple templates at the organization level with different priorities and workload selectors. This enables layered configuration strategies where you can establish baseline standards and apply targeted overrides for specific gateways.

How Template Precedence Works?​

During the translation phase, TSB determines the merge order for templates that match a gateway based on their selector precedence and the priority field. The following precedence rules are applied:

  • MP Gateway Install Resource has the highest precedence and always takes priority. It is intended for application-specific overrides.
  • Template selector precedence (from highest to lowest):
    • Cluster selectors with namespace selector matching a namespace name (most specific)
    • Cluster selectors with namespace selector matching labels
    • Cluster selectors with no namespace selector
    • Environment selectors
    • AllClusters selectors (least specific)
  • Priority field: When two or more templates share the same selector precedence, the priority field determines the merge order. Lower numerical priority values take precedence (priority 1 wins over priority 100).

For example, a template with an AllClusters selector and priority 1 will override another AllClusters template with priority 100. However, it will always be overridden by any template with a more specific selector (such as an environment or cluster selector), regardless of that template's priority value.

The final configuration is therefore the result of merging all matching templates according to their selector precedence and priority.

Example: Layered Configuration Strategy​

Consider a scenario where you need to:

  • Apply a baseline configuration across all clusters
  • Override settings for high-traffic gateways
  • Maintain the ability for application teams to make specific adjustments

Baseline Template (Low Priority):​

Create a base template with low priority (higher numerical value) that applies standard settings across all gateways:

apiVersion: gateway.tsb.tetrate.io/v2
kind: InstallGatewayTemplate
metadata:
  name: base-traffic-template
  annotations:
    tsb.tetrate.io/organization: tetrate
spec:
  displayName: "Base Traffic Template"
  description: "Baseline configuration for all gateways"
  allClustersSelector: true
  priority: 100  # Low priority (higher number)
  gatewaySpec:
    kubeSpec:
      deployment:
        hpaSpec:
          minReplicas: 2
          maxReplicas: 10
        resources:
          requests:
            memory: "256Mi"
            cpu: "200m"

Result: All ingress gateways across all clusters will be deployed with minReplicas: 2 by default.

High-Traffic Template (High Priority):​

Create a targeted template with higher priority (lower numerical value) that overrides settings for specific gateways:

apiVersion: gateway.tsb.tetrate.io/v2
kind: InstallGatewayTemplate
metadata:
  name: high-traffic-ingress-gateway-template
  annotations:
    tsb.tetrate.io/organization: tetrate
spec:
  displayName: "High Traffic Ingress Gateway Template"
  description: "Enhanced configuration for high-traffic ingress gateways"
  allClustersSelector: true
  priority: 1  # High priority (lower number)
  gatewayWorkloadSelector:
    labelsSelector:
      labels:
        app: "ingress-gateway-high-traffic"
  gatewaySpec:
    kubeSpec:
      deployment:
        hpaSpec:
          minReplicas: 4
          maxReplicas: 20
        resources:
          requests:
            memory: "512Mi"
            cpu: "500m"

Result: Across all clusters:

  • Most gateways will have minReplicas: 2 and basic resource allocations from the base template
  • Only gateways labeled with app: "ingress-gateway-high-traffic" will have minReplicas: 4 and enhanced resources
  • The higher priority template overrides only the specified fields (minReplicas, maxReplicas, resources)
  • Other properties from the base template (security context, service type, etc.) remain inherited

Application-Specific Override with MP Install Resource:​

If the marketing team needs even more replicas for a promotional event, they can create an MP Install resource:

apiVersion: install.tetrate.io/v1alpha1
kind: Gateway
metadata:
  name: httpbin-ingress-gateway
  namespace: marketing
  annotations:
    tsb.tetrate.io/organization: tetrate
    tsb.tetrate.io/tenant: marketing
    tsb.tetrate.io/workspace: marketing-ws
    tsb.tetrate.io/gatewayGroup: marketing-gg
spec:
  type: INGRESS
  targetCluster: c2
  targetNamespace: marketing
  kubeSpec:
    deployment:
      labels:
        app: httpbin-ingress-gateway
      hpaSpec:
        minReplicas: 8

Final Result:

  • The httpbin-ingress-gateway will have minReplicas: 8 (MP Install resource overrides)
  • Enhanced resource allocations from the high-priority template are retained
  • Baseline security context and other settings from the base template are still applied

Summary​

The Unified Gateway Lifecycle Management via Management Plane in TSB provides a powerful framework for standardizing gateway deployments while maintaining the flexibility needed for application-specific requirements. By leveraging organization-level templates with selective overrides, teams can achieve consistency, security, and operational efficiency across their service mesh infrastructure.
