Configuring using tctl

User authentication for the management plane is commonly configured through ManagementPlane CR or Helm values. In some cases, such as when using a Hosted Management Plane, it's not possible to edit the ManagementPlane settings directly.

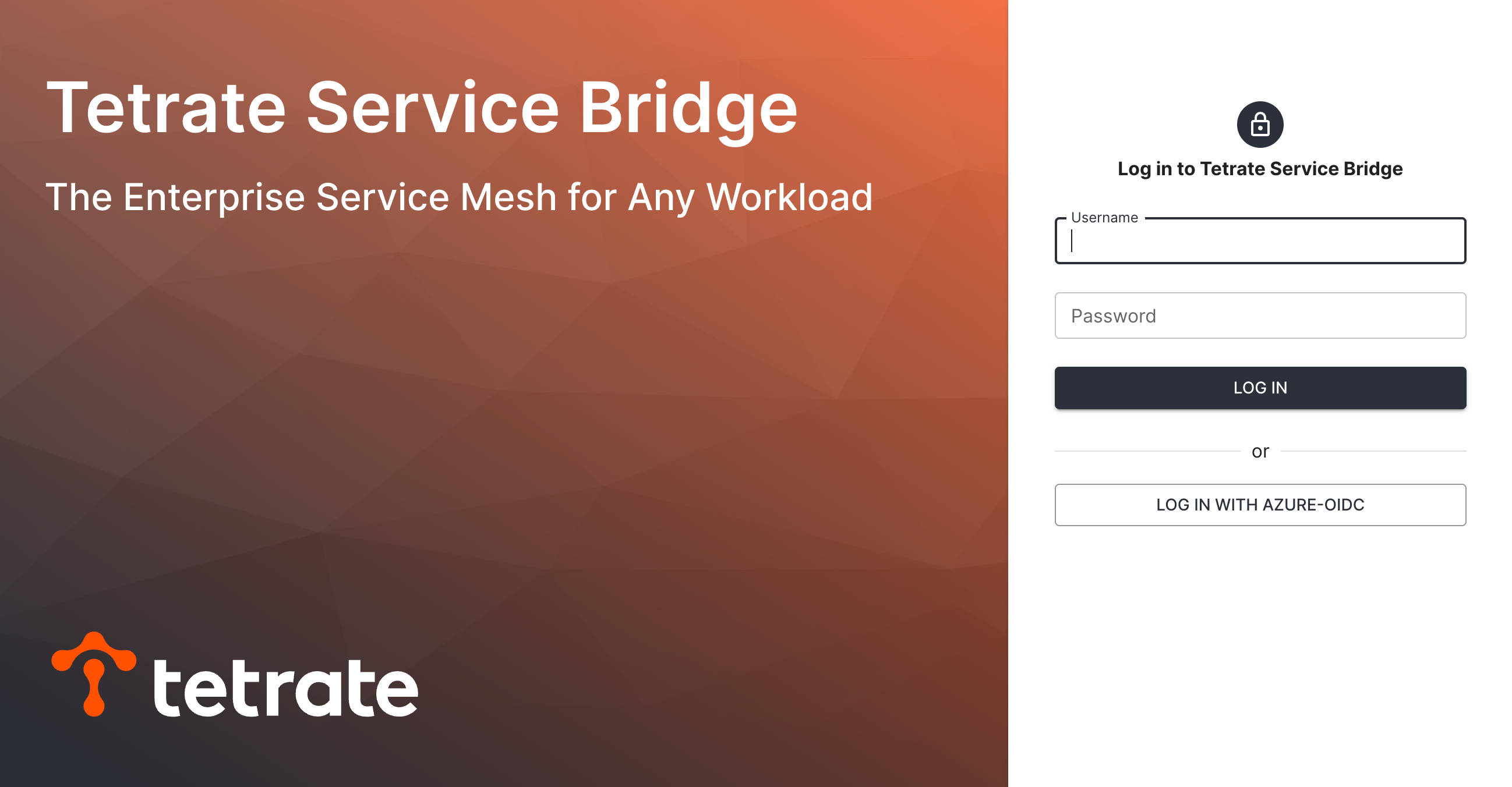

This document explains how to manage user authentication using tctl or a TSB API to supply the OIDC configuration. Once this is configured, users will be able to log in to the TSB Management Plane UI using credentials from an OIDC provider:

OIDC Login - Log in with AZURE-OIDC

Overview

The Management Plane CR contains an OIDCSettings section where an administrator can define the IdP settings for OIDC.

You can also provide these settings using the TSB OIDC resource. This resource can be managed using the TSB API, or most conveniently, using the tctl on the oidc resource type.

Worked Example

In this example, we'll configure Azure OIDC connect and add users to the TSB management plane.

1. Set up Azure OIDC connect

   Follow the instructions here Azure AD as the Identity Provider to create and configure a TSB app registration:

   • Create an App Registration called 'TSB'. Set the 'callback URI' to be https://tsb-address/iam/v2/oidc/azure-oidc/callback
   • Keep a copy of the 'TSB Client Secret', as you'll need it later
   • Add a 'web' platform, using the same 'callback URI' (Authentication > Add Redirect URI)
   • Optional: Enable the public workflow to allow for API (tctl) access for OIDC users (Authentication > Settings)

2. Configure the TSB Management Plane

   Construct an OIDC configuration for your identity provider, similar to the following.

   • The clientId is taken from the Azure App registration Application (client) ID
   • The configurationUri from the Overview > Endpoints > OpenID Connect metadata document
   • The redirectUri is the value used above
   • The secret is the base-64 encoded value of the TSB Client Secret provided by Azure
   azure-oidc.yaml

   apiVersion: api.tsb.tetrate.io/v2
   kind: OIDC
   metadata:
     name: azure-oidc
     organization: tetrate
   spec:
     config:
       clientId: 2955a6da-415e-963b-5945b68512c7
       providerConfig:
         dynamic:
           configurationUri: https://login.microsoftonline.com/1076231c-42f2-8c33-aa8680e81ea8/v2.0/.well-known/openid-configuration
       redirectUri: https://tsb-address/iam/v2/oidc/azure-oidc/callback
       scopes:
       - email
       - profile
       - openid
     secret: QUJDREVGR0hJSktMTU5PUFFSU1RVV1hZWgo=
     description: Provide OIDC authentication against the Azure endpoint
     displayName: Azure OIDC

   Password Encoding

   The password secret must be provided using base64 encoding. It is 'write-only', meaning that it cannot be read using the TSB APIs.

3. Provide the Configuration

   Apply the configuration as follows:

   tctl apply -f azure-oidc.yaml

   Check the configuration and status:

   # List OIDC settings
   tctl get oidc

   # Retrieve configuration (note that the secret is not returned)
   tctl get oidc azure-oidc -o yaml

   # Check status
   tctl status oidc azure-oidc
   tctl status oidc azure-oidc -o yaml

4. Create Users

   This process does not support the teamsync service to copy users from a remote IdP. Instead, you should manually add each supported user to TSB.

   The metadata.name must match the 'Object ID' value in the directory for each user. All other values (loginName, firstName, lastName, displayName, email) can follow your internal naming policy:

   users.yaml

   apiVersion: api.tsb.tetrate.io/v2
   kind: User
   metadata:
     name: 8f51daad-405b-9a7d-e9615f26a262
     organization: tetrate
   spec:
     loginName: user1
     firstName: User1
     lastName: User1
     displayName: User1 (Azure OIDC)
     email: user1@tetrate.io
   ---
   apiVersion: api.tsb.tetrate.io/v2
   kind: User
   metadata:
     name: 13a0c492-4e81-a2b1-560218d06b27
     organization: tetrate
   spec:
     loginName: user2
     firstName: User2
     lastName: User2
     displayName: User2 (Azure OIDC)
     email: user2@tetrate.io

   Apply these as follows:

   tctl apply -f users.yaml

   You can list the users in the TSB user database as follows:

   tctl get users

5. Create a Team

   The users you have provided must be granted permissions. In this example, we'll assign them to a team (azure-users) and grant them full access to the Tenant named default:

   azure-users.yaml

   apiVersion: api.tsb.tetrate.io/v2
   kind: Team
   metadata:
     name: azure-users
     organization: tetrate
   spec:
     members:
     - organizations/tetrate/users/8f51daad-405b-9a7d-e9615f26a262
     - organizations/tetrate/users/13a0c492-4e81-a2b1-560218d06b27
     displayName: "Azure OIDC Users"
     description: "Users who log in using OIDC authentication against the Azure endpoint"

   Apply this as follows:

   tctl apply -f azure-users.yaml
   organizations/tetrate/teams/azure-users created

   Retrieve the content as follows:

   tctl get team azure-users -o yaml

6. Grant permissions

   In this example, we will grant read permissions across the entire system, and edit permissions to the organizations/tetrate/tenants/default tenant:

   accessbindings.yaml

   apiVersion: rbac.tsb.tetrate.io/v2
   kind: AccessBindings
   metadata:
     fqn: organizations/tetrate/tenants/default
   spec:
     allow:
     - role: rbac/tenant-operator
       subjects:
       - team: organizations/tetrate/teams/azure-users
   ---
   apiVersion: rbac.tsb.tetrate.io/v2
   kind: AccessBindings
   metadata:
     fqn: organizations/tetrate
   spec:
     allow:
     - role: rbac/reader
       subjects:
       - team: organizations/tetrate/teams/azure-users

   Apply these permissions as follows:

   tctl apply -f accessbindings.yaml
   organizations/tetrate/tenants/default created
   organizations/tetrate created

   For more information, refer to the Users, Roles and Permissions documentation.
